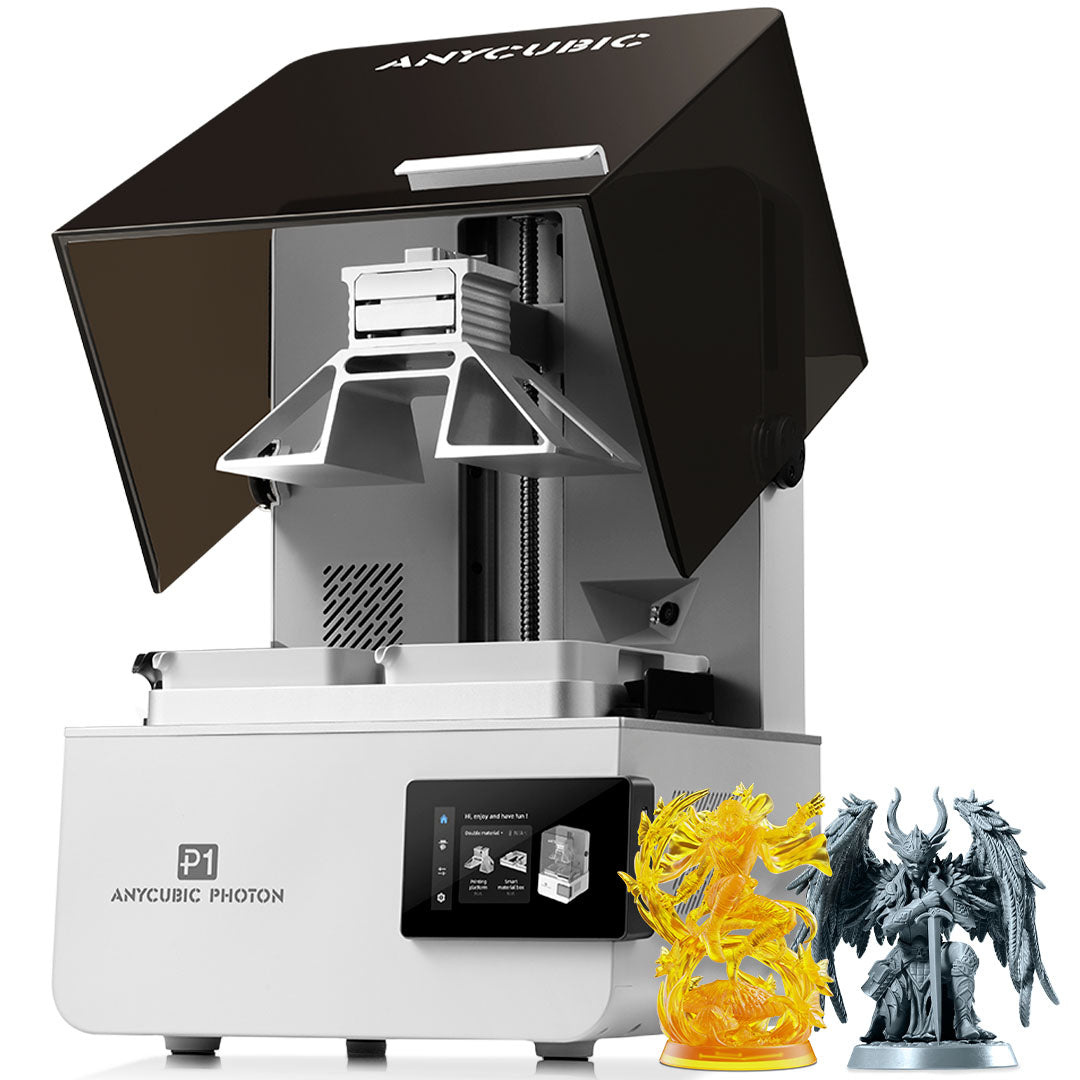

Photon P1

The Anycubic Photon P1 is a high-precision MSLA resin 3D printer designed for detailed models, prototypes and professional-quality prints. Featuring a 10.1-inch 14K monochrome LCD, advanced light uniformity technology and a precision steel build platform, it delivers exceptional detail, smooth surfaces and consistent print quality.

Designed for reliability and ease of use, the Photon P1 features Auto-Leveling 3.0 with feedback, a dual-rail ball screw Z-axis system and a temperature-controlled resin vat to improve printing performance across different environments. Its Wave Release Technology and NFEP release film help reduce peel forces, improving print success rates and reliability.

With support for a wide range of Anycubic resins, Wi-Fi connectivity and compatibility with popular slicing software, the Photon P1 is ideal for professionals, designers, hobbyists and creators requiring highly detailed resin prints.

Key Features
14K High-Resolution Printing – Produces highly detailed models with excellent surface quality
10.1-inch Monochrome LCD – Provides accurate exposure and long screen lifespan
Auto-Leveling 3.0 with Feedback – Simplifies setup and improves print consistency
Temperature-Controlled Resin Vat – Maintains resin performance in different conditions
Wave Release Technology – Helps reduce peel forces and improve print reliability
Dual Rail + Ball Screw Z-Axis – Provides stable and accurate vertical movement
Precision Steel Build Platform – Improves adhesion and dimensional accuracy
Hinged Cover Design – Provides easier access and improved usability
Power Loss Resume – Helps recover interrupted prints
Wi-Fi & App Support – Enables easier file management and monitoring

Specifications

• Printing Technology: MSLA Resin 3D Printing
• LCD Resolution: 10.1-inch Monochrome 14K LCD
• Build Volume: 223 × 126 × 230 mm
• Printing Volume: 6.5 L
• XY Resolution: 16.8 × 24.8 μm
• Layer Height: 0.02–0.15 mm
• Print Speed: 25–35 mm/h (0.05 mm layer, standard resin)
• Light Source: COB + Fresnel + MASK
• Light Intensity: 5000 μW/cm²
• Build Platform: Precision steel platform
• Release Film: NFEP
• Resin Vat Capacity: ≤1 L
• Levelling System: Auto-Leveling 3.0 with feedback
• Z-Axis System: Dual rail + ball screw
• Resin Compatibility: Anycubic standard, ABS-like, water-washable and engineering resins
• Operating Screen: 4.5-inch resistive touchscreen
• Connectivity: USB 2.0 / Wi-Fi / LAN (2.4GHz)
• Slicing Software: Anycubic Photon Workshop, Chitubox, Lychee, Tango
• Power Supply: 215W
• Power Loss Recovery: Supported
• Air Purifier: Optional AirPure 2.0

Warranty: 1 year manufacturer warranty
